Staging the Nixie line-up on PCB

First things first: do ZM1332/5870S fit and align on my fresh PCB's? Do they look right? In order to get a first impression I picked four of those Nixies and inserted them into one PCB.

Probably the holes in the footprint I made in KiCad could have been a tad larger. Nixie pins need to be 100% straight to enter, but the black plastic base can be pulled down to keep them aligned. On the other hand, the little beauties stand up perfecly: good when I will solder them to the PCB.

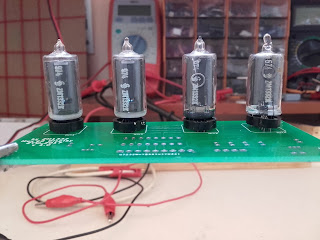

Front view.

Top view.

Back view.
